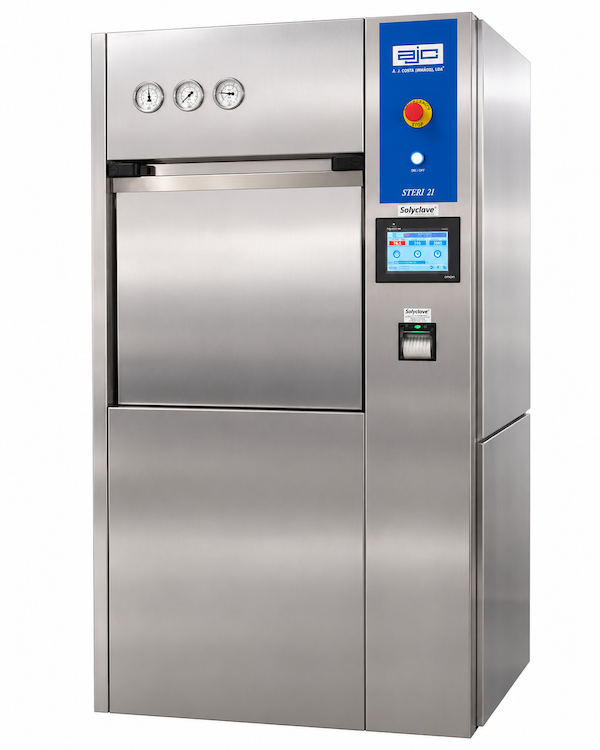

AJC Steri 21
Compact horizontal steam steriliser for small and medium hospitals and laboratories, with pre-vacuum, gravity and liquid cycles. Built to EN 285 and the Pressure Equipment Directive 2014/68/EU. Made in Portugal by A.J. Costa, steriliser manufacturers since 1953.
Capacity
- AJC 40.40.66: 105 litres (400 x 400 x 660 mm)
- AJC 50.50.66: 165 litres (500 x 500 x 660 mm)
- AJC 50.50.100: 250 litres (500 x 500 x 1000 mm)
Available with one door, or two interlocked pass-through doors separating the non-sterile and sterile sides. Freestanding or recessed through a wall.
AISI 316L chamber, jacket and vertical sliding doors, with a water-saving liquid ring vacuum pump. Runs on building steam or an optional built-in electric steam generator.
PLC control with a 7" colour touchscreen and built-in printer. Options include a PT100 load probe with F0 control, an independent monitoring system and AJC Vision Map documentation software.
Programmable Cycles
9 factory cycles including Bowie & Dick and vacuum tests, with up to 25 programmable
Liquid Loads
optional PT100 load probe controls heat sensitive liquids by F0 value
Cycle Records
built-in printer as standard, with optional Vision Map software and independent monitoring
Water Saving
liquid ring vacuum pump with water conservation and waste water cooling
